THHN-THWN-2 UL 83/ UL 1685/ cUL

Application :
THHN / THWN-2 / T90 cables are primarily used for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90°C. Voltage rating for cable is 600V.

Standards :
• UL 83, UL 1685, cUL
• CSA C22.2 No. 75
• 1/0 & larger are rated for CT use
• Requirements of the National Electrical Code
• NEMA WC-70 / ICEA S-95-658
• ASTM B800, B801, B836
• Federal Specification AA-59544

Construction :

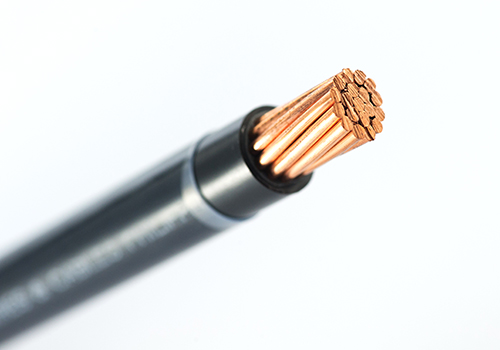

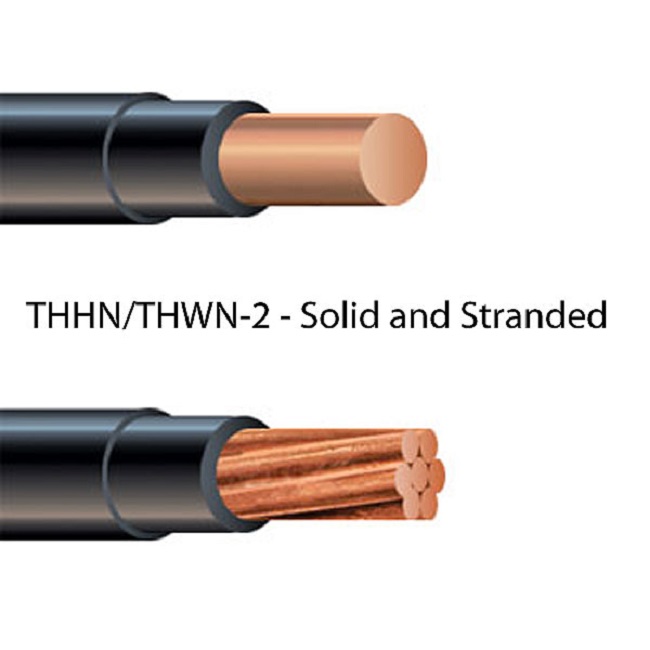

CONDUCTORS: Compact bare AA-8000 series aluminum, with Class B stranded per ASTM / Either solid or stranded soft drawn copper, per ASTM Standards.
INSULATION: Low coefficient of friction (“slick”), abrasion, heat and moisture resistant Polyvinyl Chloride (PVC)
JACKET: A clear abrasion, heat, moisture resistant and low coefficient of friction nylon jacket.
