Submarine Cable MV

Application
These submarine cables are used for power transmission to offshore islands, oil platforms or to
cross-rivers and lakes. Cable design based on the mayor national or international standards e.g.
VDE, IEC and ICEA or according to customers design and standards.

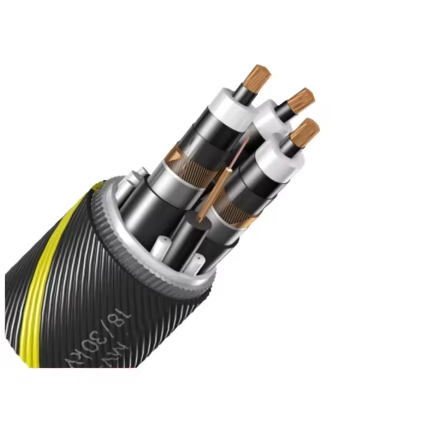

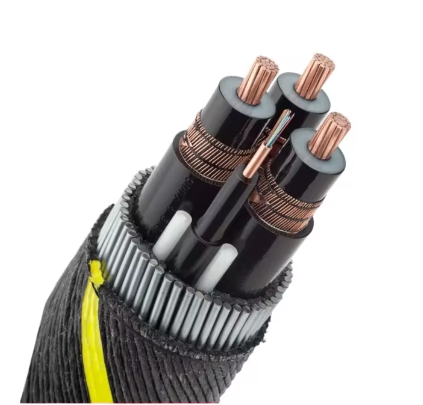

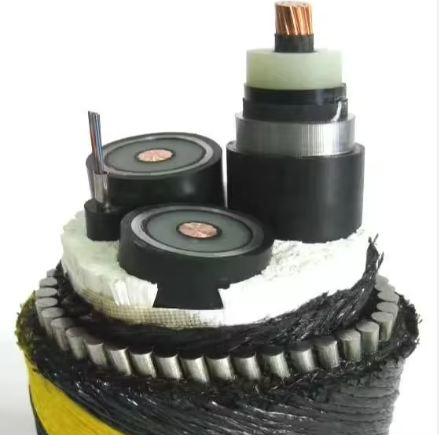

Construction
 Conductor: Copper conductor, circular stranded compacted, water blocked.
 Conductor Screening: Extruded semi-conductive compound.
 Insulation: XLPE.
 Insulation Screening: Extruded semi-conductive compound.
 Screen: Copper wires and copper helix, swelling powder.
 Laminated Core Sheath: Aluminium tape bonded to overlaying PE sheath
 Fillers: Polypropylene filler.
 Fibre-optic Element: Fibre optic cable.
 Separator: Binder tapes.
 Bedding Layer: Polypropylene strings.
 Armour: Galvanized steel wires.
 Serving: Hessian tapes, bituminous compound, polypropylene strings.
